Durable Single Screw for Plastic Extruder and Injection Processing

Commonly used single screw models:

Technical Parameter

model	L/D	output capacity (kg/h)	screw rotation speed (rpm)	driving motor (kw)	center height (mm)
NHY20	20:1	3-5	10-60	1.1/1.5/2.2	1000-1400
NHYZS25	25:1	5-8	10-60	2.2/3.0/4.0	1000-1400
NHY30	25:1	5-10	10-60	2.2/3.0/4.0	1000-1400
NHY45	25-36:1	10-120	10-150	5.5-22	1000-1400
NHY65	25-36:1	60-300	20-150	22-75	1000
NHY75	25-36:1	200-450	20-150	30-132	1000
NHY90	25-36:1	180-600	20-110	30-185	1000-1100
NHY120	25-36:1	320-1000	20-90	75-280	1000-1250
NHY150	25-36:1	400-1300	20-75	90-400	1000-1300

Nanhaiya typically uses high-strength alloy steel, such as 38CrMoALA, which possesses excellent mechanical properties and wear resistance, providing good basic strength and toughness for the barrel. The barrel lining adopts a bimetallic composite structure, with the inner lining layer mostly made of high-chromium cast iron, nickel-based alloys, or tungsten carbide sprayed materials.

Single screws can be used for:

PE water supply pipes, PVC drainage pipes, PPR hot water pipes, gas pipes; PVC decorative sheets, PP food-grade sheets (for blister packaging), PS foam sheets; PE cling film, LDPE agricultural film, PP packaging film; PVC door and window frames, plastic skirting boards, automotive sealing strips (soft PVC or TPE material); general-purpose PE granules, PVC profile-specific granules, masterbatch (high-concentration pigment granules); recycled PE granules (for producing garbage bags), recycled PP granules (for producing plastic pallets).

View as

Aluminum-Plastic Panel Single Screw

The Aluminum-Plastic Panel Single Screw directly determines the quality of the core layer, production efficiency and cost.The special aluminum-plastic board produced by our company uses a single screw extruder. The mixture is heated, sheared, melted and homogenized in the single screw extruder, resulting in a uniform melt.Ensure the stability of quality

View More >> Send Inquiry >>

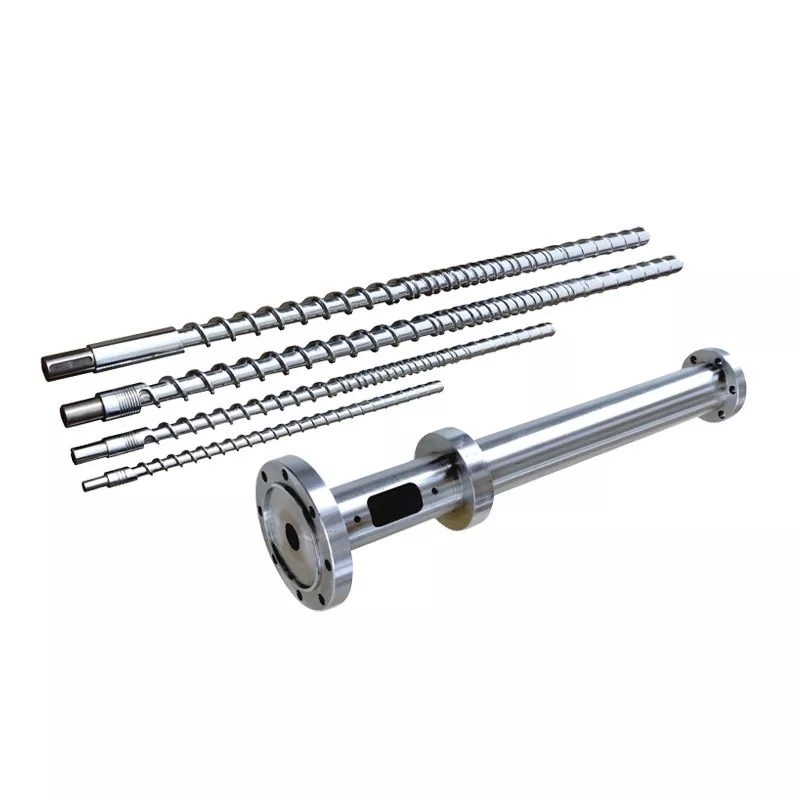

PVC PIPE Single Screw

Zhoushan Nanhaiya is a leading manufacturer of PVC PIPE Single Screw in China for more than 20 years. We provide one-stop solutions in the plastic-related fields for global enterprises. OEM ODM is supported.

View More >> Send Inquiry >>

PS Foaming Single Screw

The selection of materials for the PS Foaming Single Screw is extremely strict, featuring excellent wear resistance and high temperature tolerance. The unique screw groove design ensures smooth material transmission without any accumulation. The single-screw model is simple and efficient, with the barrel and screw working in harmony. The heating system distributes heat evenly, allowing PS foam particles to melt rapidly and be fully plasticized. The molten PS foam material is precisely pushed through the mold for shaping, ensuring consistent product density and excellent performance.

View More >> Send Inquiry >>

Transparent Granulation Single Screw

The Transparent Granulation Single Screw has extremely strict requirements for the surface quality of the products. Any blemishes, pores, whitening, star marks, black spots, color changes, poor luster, etc. are not allowed. The transparent granulation-specific single screw produced by Nanhaiya can maximize uniform plasticization, ensuring that the material is perfectly plasticized during the plasticization stage and achieving the highest purity.

View More >> Send Inquiry >>

LDPE Hdpe Film Single Screw

Plastic bags, cling film, agricultural mulch films, and packaging films,LDPE Hdpe Film Single Screw - these types of products are frequently used in daily life and have a high demand. Nanhaiya, as a professional manufacturer of blow-molding extruder matching screws, aims to produce high-quality, durable, and suitable for long-term production operations single screw barrel for the market.

View More >> Send Inquiry >>

Super Wear-Resistant Single Screw

The outstanding wear resistance begins with high-quality Super Wear-Resistant Single Screw. We select premium nitrided steel (such as 38CrMoAlA) to ensure the core is strong and durable, providing a solid foundation for surface strengthening.Offer a full range of wear-resistant configurations, from the classic deep ion nitriding to the top-of-the-line dual-metal combination.

View More >> Send Inquiry >>

Single Screw from Nanhaiya offers high-quality, durable solutions with fast delivery and custom design options. Contact us today for competitive pricing.
