Aluminum-Plastic Panel Single Screw

The Aluminum-Plastic Panel Single Screw directly determines the quality of the core layer, production efficiency and cost.The special aluminum-plastic board produced by our company uses a single screw extruder. The mixture is heated, sheared, melted and homogenized in the single screw extruder, resulting in a uniform melt.Ensure the stability of quality

Send Inquiry

Product Description

Production Details

1. The diameter of the Aluminum-Plastic Panel Single Screw is determined according to the width of the aluminum-plastic board and the production requirements. Common sizes include Φ65mm, Φ90mm, Φ120mm, Φ150mm, etc.

2. The surface of the single screw is treated for high smoothness, and the flow channels are polished to prevent the adhesion and degradation of the materials, thus avoiding the formation of black spots.

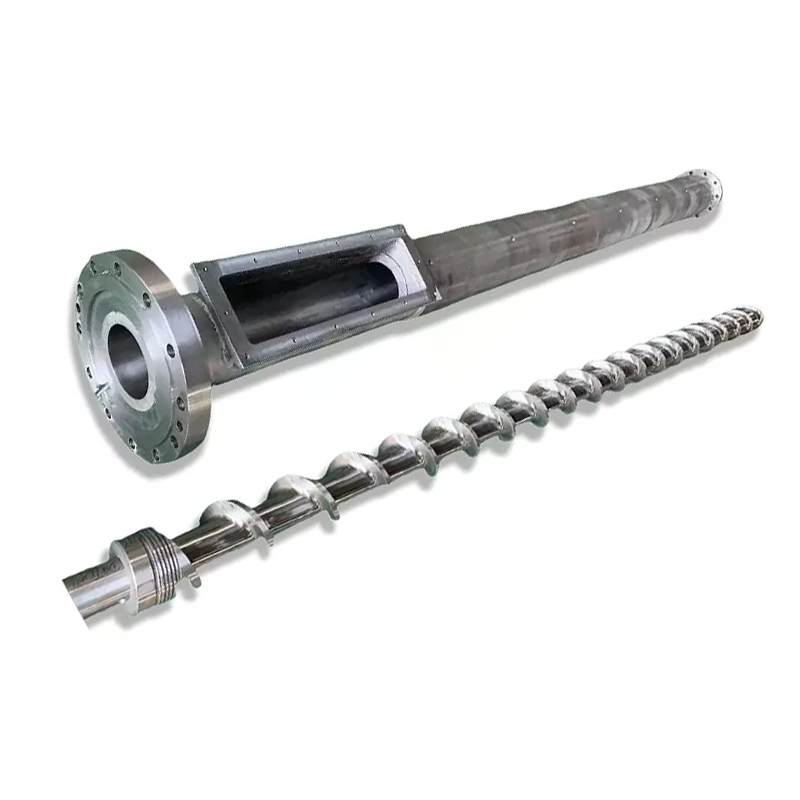

3. The specialized aluminum-plastic board matching screw design features a screw head and a pinion mixing section. The screw head adopts a torpedo shape or a round shape to avoid dead corners and prevent material from getting stuck and decomposing.

Product Parameters

Parameter	Details
Screw Diameter	Common specifications include 35mm, 45mm, 65mm, 75mm, 85mm, 90mm, etc. For instance, when processing PVC pipes, a 65mm screw is widely used as it achieves a good balance between output and energy consumption.
Length-to-Diameter Ratio (L/D Ratio)	Generally ranges from 20:1 to 30:1. For heat-sensitive plastics like PVC, the L/D ratio is usually between 20:1 and 25:1. This ensures sufficient plasticization while reducing the residence time of materials in the barrel to lower the risk of decomposition.
Compression Ratio	Typically falls between 3.5:1 and 4.5:1. A larger compression ratio facilitates full plasticization and compaction of PVC materials.
Screw Channel Depth	The screw channel is relatively shallow, especially in the metering section. This design reduces the residence time of materials and minimizes the possibility of decomposition.
Number of Heating and Cooling Zones	Varies based on screw diameter and equipment specifications, usually ranging from 5 to 6 zones. For example, a single-screw extruder with a 65mm screw diameter may have 6 heating and cooling zones to enable precise temperature control in each segment.
Screw Speed	The speed range needs to be adjusted according to the specific screw diameter and production requirements. For a φ65mm screw, when producing pipes with a 3mm wall thickness, the recommended speed is controlled within the range of 25-35rpm.
Drive Power	Related to screw diameter and output. For example, a single-screw extruder with a 65mm screw diameter typically has a drive power of 45-90kw.
Operating Temperature	The temperature of the feeding section is generally 160-170℃, the melting section is 180-190℃, and the die head section is 175-185℃.

Product Feature And Application

1. With NHY single screw barrel for alu-plastic panel, An efficient barrier-type mixing section ensures complete melting. Ensure that the melt temperature is extremely uniform, and evenly disperse the colorants, flame retardants, and other additives to guarantee consistent color and stable performance of the sheet.

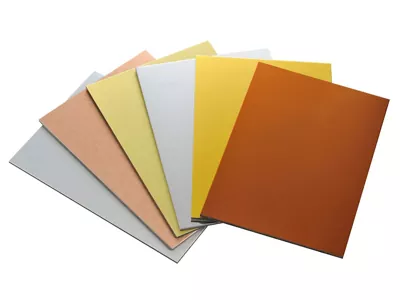

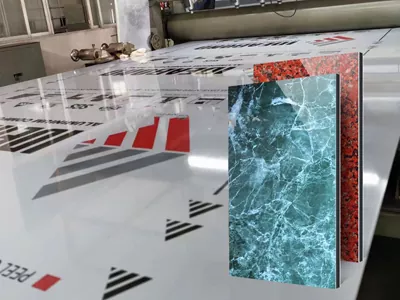

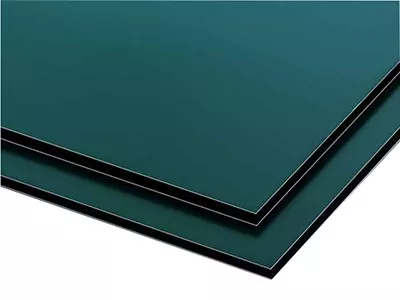

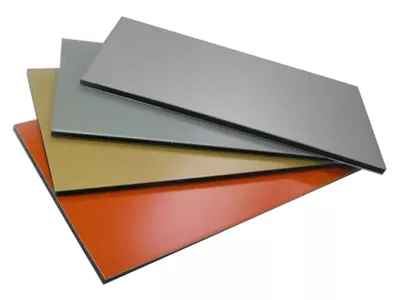

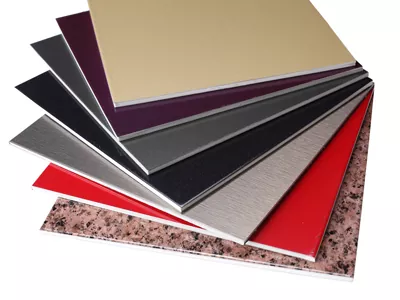

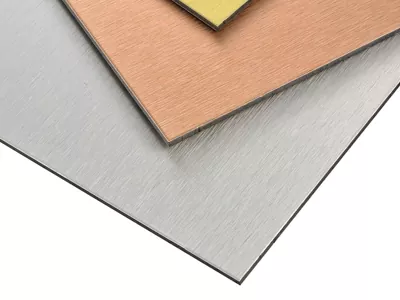

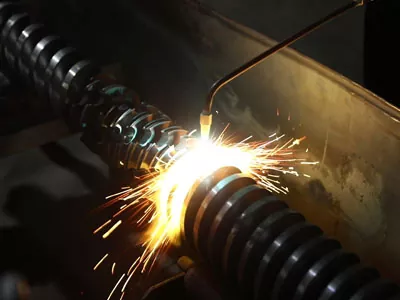

2. To prevent the strong corrosiveness of the flame retardant, the surface of the single screw is treated with a dual alloy of strengthened tungsten carbide to ensure long-term dimensional stability.Aluminum-plastic single screw type, suitable for common PE aluminum-plastic panels, fireproof type, flame-retardant type aluminum-plastic panels, all-aluminum, honeycomb type aluminum-plastic panels, flat panels, punched panels, special-shaped panels, etc.
