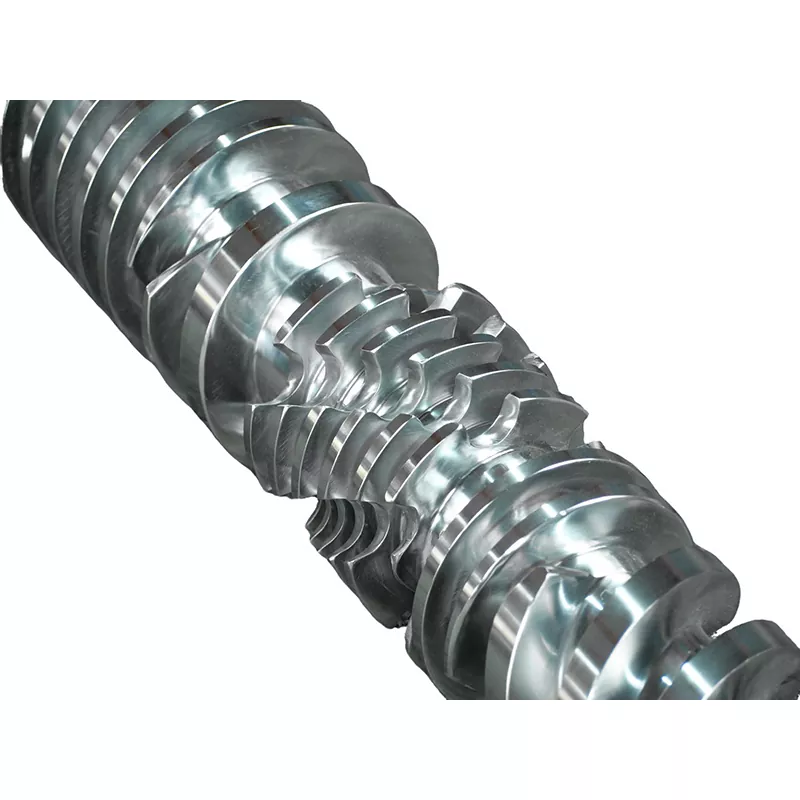

PVC Pipe Conical Twin Screw Barrel

Product Feature And Application

1. with High-quality forged steel ,Surface plasmonic cladding of nickel-based alloy. Our PVC Pipe Conical Twin Screw Barrel ,After quenching and tempering, and overall nitriding treatment, the alloy thickness can reach 2-2.5mm, and its hardness is superior to that of similar products.

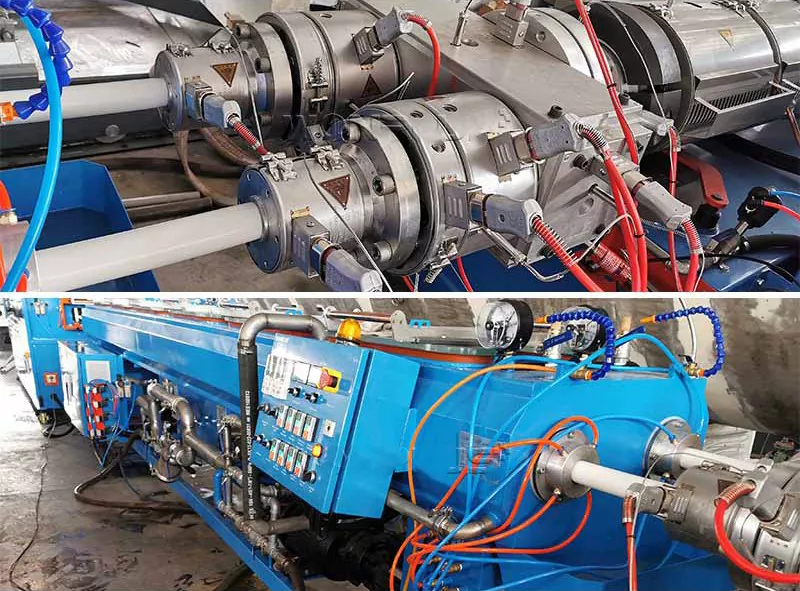

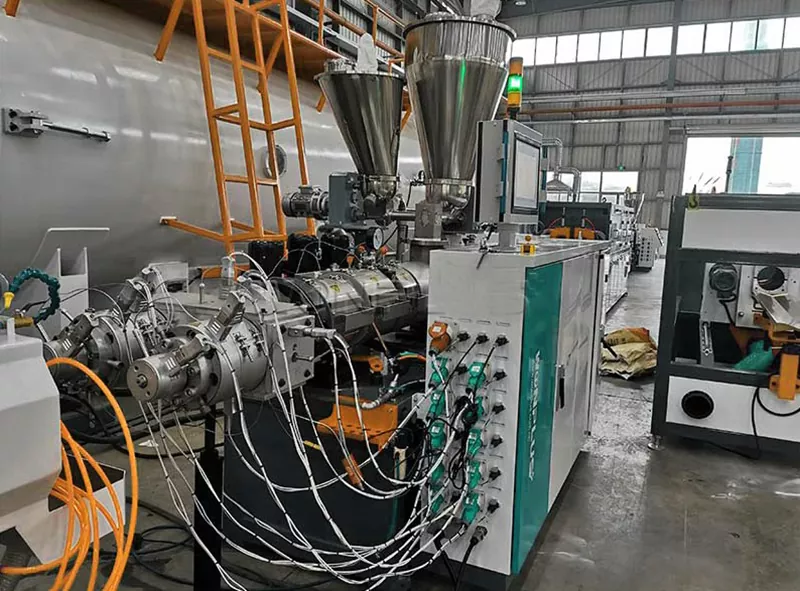

2. Conical twin screw can produce pipes of various sizes.16-63mm,50-110mm,90-160mm,The supporting system consists of an engine, a cooling water tank, a traction machine, etc., forming the production line.

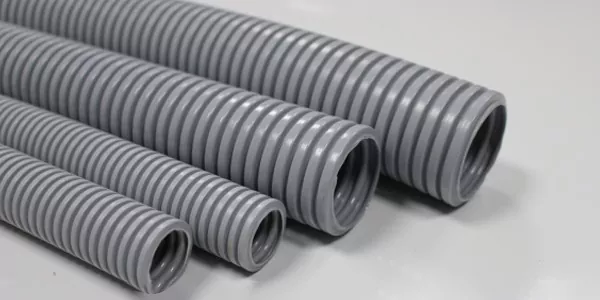

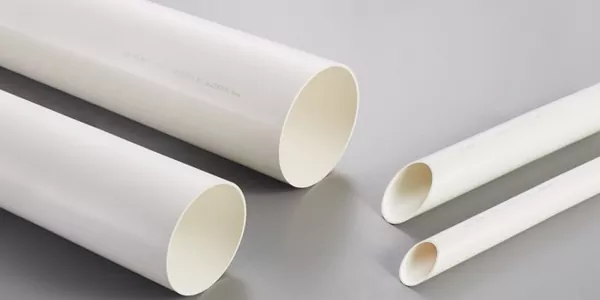

3. Suitable for PE and PP,PVC corrugated pipe extrusion.The product can be applied to building water supply and drainage, wire conduits, municipal sewage, irrigation, car washing, pneumatic systems, medical applications, large-scale drainage and sewage projects.

Production Details

1. The special screw design ensures that the plastic is fully and evenly melted, thereby minimizing shear heat and maintaining stable temperature.

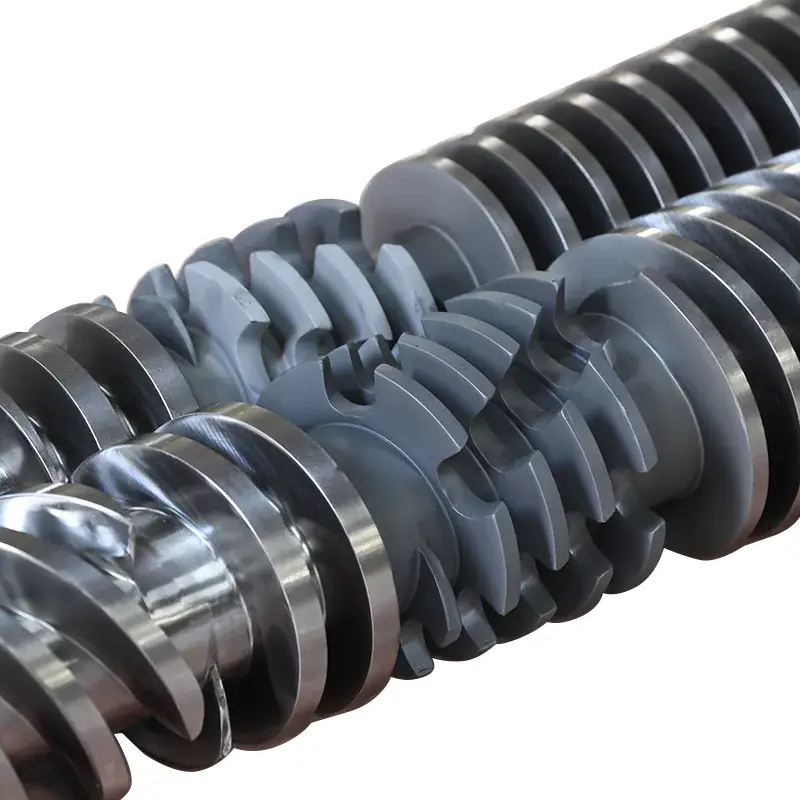

2. The gradient-type screw, with its unique screw grooves and barrier sections, is made of high-strength, corrosion-resistant nitrided steel or dual-alloy steel.

3. Special barrel groove design enhances conveying efficiency and increases output

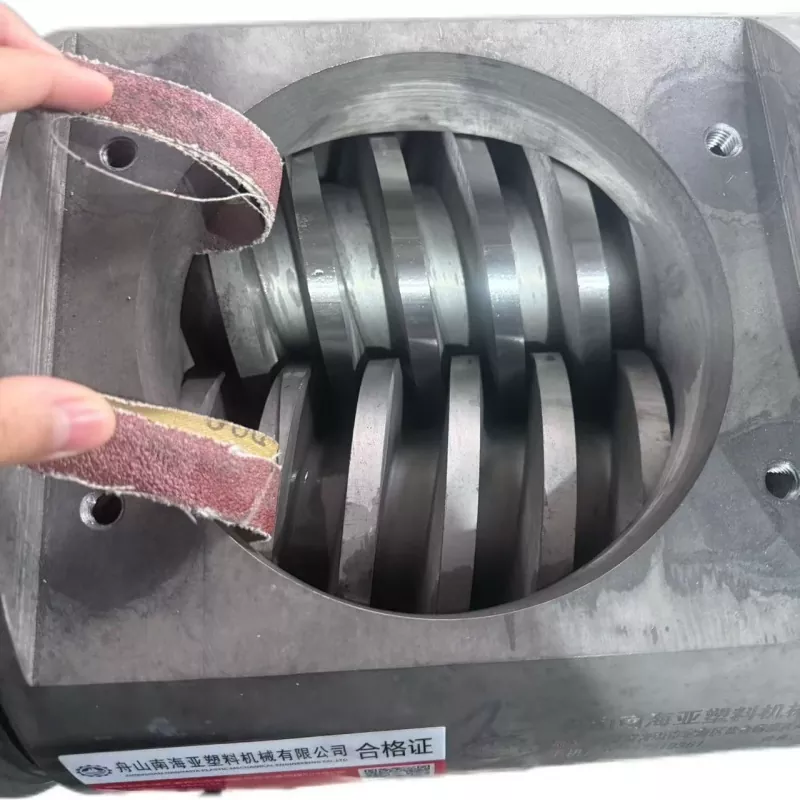

4. The inner wall of the barrel is also equipped with a nitrogenized steel or tungsten alloy liner, which has extremely high wear resistance and corrosion resistance, ensuring a long-term stable cooperation with the screw.
