What Makes Planetary Screw a Micro-Machining Peak?

In the realm of modern plastic processing and precision machinery, micro-machining has become a core competitive dimension, especially for components that demand high precision, strong wear resistance, and stable performance. Among these, the planetary screw stands out as a landmark product in the screw manufacturing industry, representing the highest level of micro-machining technology.

What Is a Planetary Screw? Core Definition & Structural Advantages

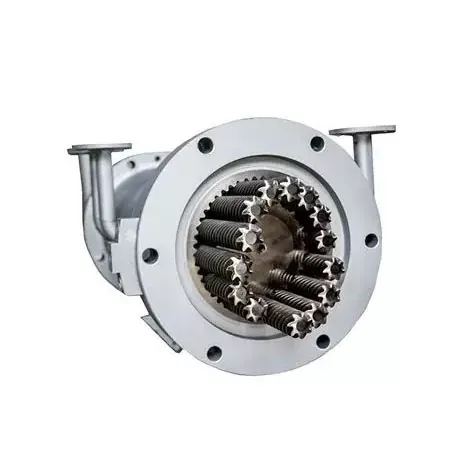

A planetary screw is a high-efficiency, high-precision screw component designed for complex plastic processing and micro-transmission scenarios. Different from traditional single screws or twin screws, its unique planetary gear structure enables multiple threaded rollers to rotate around the main screw while spinning themselves, forming a planetary motion system.

1. Unique Structural Design

Multi-roller Meshing: Multiple planetary rollers mesh with the main screw and inner ring simultaneously, increasing contact areas by 3-5 times compared to traditional screws.

Compact Layout: The integrated planetary structure reduces axial space by over 30%, making it suitable for limited installation environments.

Stress Uniformity: Load is evenly distributed across all meshing points, avoiding local wear and extending service life.

2. Core Functional Characteristics

High Precision: Machining accuracy reaches micron level, meeting strict requirements for micro-size and high-dimensional stability.

High Load Capacity: Bearing capacity is 6 times that of conventional ball screws under the same volume, adapting to heavy-duty processing conditions.

Low Noise & Smooth Operation: No ball collision in the transmission process; noise is reduced by over 40% compared to traditional structures.

Why Planetary Screw Is the Peak of Micro-Machining? Key Technical Breakthroughs

Micro-machining of planetary screws is hailed as a peak technology in the industry because it breaks through three major technical bottlenecks that have long restricted high-precision screw manufacturing. Zhoushan Nanhaiya Plastic Machinery Co., Ltd. has achieved independent innovation in these core technologies, leading the industry’s upgrading.

1. Ultra-Precision Machining Technology: Breaking the Micron Barrier

The biggest challenge in planetary screw manufacturing is controlling dimensional accuracy and surface finish at the micron level. Traditional processing methods struggle with high-precision thread forming, surface roughness control and consistency of mass production.

Nanhaiya’s Solution

Adopts intelligent CNC grinding equipment imported from Europe and America, equipped with high-precision linear guides and servo systems.

Implements alloy spray welding technology on the screw surface, improving hardness while ensuring surface smoothness.

Establishes a full-process precision inspection system with 100% testing of key dimensions.

2. High-Strength Alloy Material Technology: Balancing Hardness and Toughness

Planetary screws operate under long-term high load and high friction conditions, requiring materials with high hardness, strong wear resistance, and good toughness. Ordinary alloy steels fail to meet the requirements, while imported high-grade materials are costly.

Nanhaiya’s Innovation

Develops a custom high-strength alloy formula by integrating over a decade of material research experience.

Applies vacuum quenching and low-temperature tempering processes to eliminate internal stress and improve material stability.

The material has excellent corrosion resistance, adapting to processing scenarios of special materials such as PVC, EVA, and TPR.

3. Complex Structure Assembly Technology: Achieving Perfect Meshing

The planetary screw consists of dozens of components, and assembly accuracy directly determines product performance. Even tiny assembly errors can lead to uneven stress, increased wear, and reduced precision.

Nanhaiya’s Advantages

Adopts clean assembly workshops with constant temperature and humidity to avoid environmental interference.

Uses precision positioning fixtures and torque wrenches to control assembly errors within ultra-fine range.

Conducts full-load trial operation for each assembled planetary screw to ensure smooth meshing and stable performance.

H2 Core Advantages of Nanhaiya’s Planetary Screw

As a professional manufacturer focusing on precision screw and barrel manufacturing since 2014, Zhoushan Nanhaiya Plastic Machinery Co., Ltd. deeply understands the core difficulties customers face in plastic processing. The company’s planetary screw products precisely match actual production demands with outstanding comprehensive performance.

1. Ultra-High Precision: Ensuring Product Consistency

Key dimensions are controlled within tiny tolerance range, meeting the highest precision standards in the industry.

No precision attenuation occurs after long-term operation, ensuring consistent quality of processed products.

Supports customized production of miniature planetary screws, meeting the needs of ultra-small equipment.

2. Super Wear Resistance & Long Service Life

The screw surface is sprayed with high-hardness alloy, with wear resistance multiple times that of ordinary screws.

The planetary structure disperses load, avoiding local wear and extending service life greatly.

Reduces downtime and replacement frequency, effectively lowering long-term production costs.

3. Wide Adaptability to Special Materials

Suitable for processing PE wood-plastic composites, PVC, EVA, TPR, TR, aluminum-plastic composite panels and other special materials.

Maintains stable performance in high-temperature and corrosive processing environments.

Provides personalized planetary screw design and manufacturing according to custom processing requirements.

4. Cost-Effective & Reliable Supply

Breaks the monopoly of foreign brands, with favorable price while maintaining equivalent performance.

Has independent production base and intelligent production lines, ensuring on-time delivery of large orders.

Provides professional technical support and installation guidance all year round.

H2 Application Scenarios of Nanhaiya’s Planetary Screw

With its outstanding performance, Nanhaiya’s planetary screw has been widely applied in multiple high-precision processing industries, becoming a core component for upgrading production equipment.

1. Plastic Extrusion Industry

Suitable for PE wood-plastic, PVC wood-plastic composite material extrusion.

Applied to precision extrusion of aluminum-plastic composite panels, EVA solar film and TPR soft rubber profiles.

2. Precision Machinery & Equipment

Applied in medical equipment, semiconductor equipment and micro transmission devices.

Matches injection molding machines and blow molding machines for precision plastic parts production.

3. New Material Processing

Suitable for processing PLA, PHA and other biodegradable plastics.

Applied in processing of PA, PC, ABS and other high-performance engineering plastics.

As the core product of micro-machining technology, the planetary screw represents the highest level of precision screw manufacturing. With outstanding comprehensive performance, it has become an indispensable component in modern plastic processing and precision machinery industries.

Zhoushan Nanhaiya Plastic Machinery Co., Ltd. will continue to focus on the R&D and innovation of planetary screw and barrel products. The company keeps optimizing technical strength and product quality, delivering reliable precision screw solutions for global industrial clients.

Whether for plastic extrusion, precision machinery manufacturing or new material processing, Nanhaiya’s planetary screw can adapt to diverse production conditions and support equipment to achieve higher precision, higher efficiency and longer service life.
